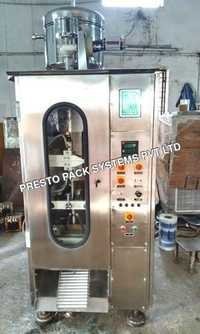

Single Head Milk Packing Machine

Single Head Milk Packing Machine

Designed and manufactured to perfection, we are one of the most excellent and leading manufacturers and exporters of Single Head Milk Packing. Our offered range of machine is widely used for packing liquids like mineral water, milk, buttermilk and soft drink. At our sophisticated manufacturing unit, these machines are verified on various parameters to ascertain the quality of the product. The machines offered by us are known for their high operational fluency, user friendly design and less power consumption. The Single Head Milk Packing Machine is made available to the client  at economical prices.

TECHNICAL DATA

_____________________________________________________________________

 OVERALL DIAMENSIONS

 HEIGHT                                              2.55 Mtrs                                             2.55 Mtrs

 WIDTH                                                0.9 Mtrs                                              1.61 Mtr

DEPTH                                                1.01 Mtrs                                             1.01 Mtrs

WEIGHT                                             450 Kgs                                               850 Kgs       ELECTRICITY                                    220 v ± 5% 1f                 220 v ± 5% 1f                                                     415 v ± 5% 3f                        415 v ± 5% 3f

PEAK POWER RATING                     4W (Peak)                                     7.5KW (Peak)

POWER CONSUMPTION                   1 KW / hr                                             2 KW / hr

CAPACITY                   2200-3000 Pouches/Hr                       4400-6000 Pouches / Hr

RANGE              200 ml,500ml,1000 ml                                    200 ml,500ml,1000 ml

 FILM WIDTH                                      325 mm                                               325 mm

POUCH WIDTH                                  150 mm                                               150 mm

  TYPE OF VERTICAL SEAL               Overlap                                               Overlap

 SEALING SYSTEM                             Impulse                                                Impulse

FILM THICKNESS                              40 -80 Microns                          40 – 80 Microns

    FILM MATERIALS                             LLD/LLDPE                                 LLD/LLDP

FILLING ACCURACY                Â± 2 ml                                                  ± 2 ml

 POUCH DIMENSION FOR L 245 mm x W 145 mm              L 245 mm x W 145 mm

1000 ML

 POUCH DIMENSION FOR             L 160 mm x W 145 mm    L 160 mm x W 145 mm

500 ML

 POUCH DIMENSION FOR          L 110 mm x W 145 mm      L 110 mm x W 145 mm

250 ML

________________________________________________________________________________
