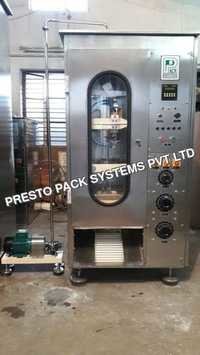

Oil Packing Machine

Product Description

Oil Packing Machine

At our premises, we are engaged in manufacturing a wide range of Oil Packing Machine for our valued clients. The machines are manufactured at our premises using topmost quality materials as per the industry standards and norms. Widely used in packaging industry, our offered packaging machine is widely accredited by the clients because of features such as rugged design, high operational fluency and negligible maintenance. In addition to this, the Oil Packing Machine is offered to the clients at reasonable prices.

Further Details:

We offer a wide range of Packaging Machines for Viscous Liquids withPP-2000DIO as item code. These machines are pneumatically operated and are used for packaging a variety of viscous liquids such as edible oils, vanaspati and non-edible oils. Our product range offers excellent features such as speedy filling product range and quality.

 TECHNICAL DATA

   AUTOMATIC FORM FILL & SEAL MACHINE

  TO OIL, GHEE, VANASPATHI, LUBRICANTS ETC

________________________________________________________________________________

DESCRIPTION     SINGLE HEAD PP-1000 S-M             SINGLE HEADPP1000 S-M

                                           CENTRE SEALING                  THREE SIDE SEALING

----------------------------------------------------------- ------------------------------------------------------------

OVERALL DIAMENSIONS

HEIGHT                                           2.1 Mtrs                                              2.2 Mtrs

WIDTH                                             1.02 Mtrs                                            1.15 Mtrs

DEPTH                                       1.01 Mtrs                                     1.01 Mtrs

WEIGHT                                         450 Kgs                                              550 Kgs

                                              230V/1 Phase                                  230 Volts 50 Cycles 1-P

ELECTRICITY                             450 Volts, 50 cycles,                   450 Volts, 50 cycles,

                                                         3 phase                                               3 phase

PEAK POWER RATING                   8 KW (Peak)                                       9 KW (peak)

POWER CONSUMPTION                 3 KW / hr                                            3.0 KW / hr

 CAPACITY                                900-1200 Pouches/Hr                     900-1200 Pouches/Hr

RANGE                                        200 ml 1000 ml                                200 ml 1000 ml

 FILM WIDTH                                    325 mm                                              324 mm

POUCH WIDTH                                  150 mm                                              162 mm

 TYPE OF VERTICAL SEAL              Overlap                                               Side Sealing

 SEALING SYSTEM                             Impulse                                               Impulse

 FILM THICKNESS                       70 - 120 Microns                                70 - 120 Microns

 FILM MATERIALS        LDPE / HDPE / 3/5 layer                     LDPE / HDPE / 3/5 layer

 FILLING ACCURACY                2 ml                                          2 ml

 POUCH DIMENSION FOR        L 250 mm x W 150 m                 L 250 mm x W 162 mm

1000 ML

 POUCH DIMENSION FOR  L 160 mm x W 150 mm                     L 160 mm x W 162 mm

500 ML

 POUCH DIMENSION             L 110 mm x W 150 m                   L 90 mm x W 162 mm

250 ML

________________________________________________________________________________
