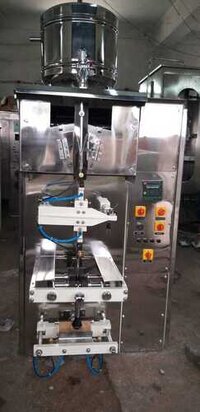

Mineral Water Pouch Packing Machine

Mineral Water Pouch Packing Machine
Mineral Water Pouch Packing Machine
Product Code : PP2000 M TATA TYPE
Brand Name : PRESTO PACK
Product Description

Mineral Water Pouch Packing Machine :-

We are engaged in Manufacturing and supplying of Mineral Water Pouch Packing Machine in Hyderabad. We design and manufacture as per the requirements of  clients as per their given specification.

 TECHNICAL DATA

AUTOMATIC FORM FILL & SEAL MACHINE

TO PACK MILK, MINERAL WATER, SOFT DRINKS

______________________________________________________________________________

DESCRIPTION         SINGLE HEAD PP - 2000 M       DOUBLE HEAD PP - 4000 DIO M

                                                      (OPEN type)                                 (CLOSED TYPE)



OVERALL DIAMENSIONS



HEIGHT                                              2.05 Mtrs                                             2.05 Mtrs



WIDTH                                                0.81 Mtrs                                             1.55 Mtrs



DEPTH                                                1.05 Mtrs                                             1.05 Mtrs



WEIGTH                                             450 Kgs                                               850 Kgs



ELECTRICITY                        220 v ± 5% 1f                     220 v ± 5% 1f                                       415 v ± 5% 3f                     415 v ± 5% 3f

PEAK POWER RATING               3 KW (Peak)                                        6 KW (Peak)

POWER CONSUMPTION               1 KW / hr                                            2 KW / hr

CAPACITY                            2700 Pouches/Hr                                 5400 Pouches/Hr

RANGE                                       80 ml – 200 ml                                    80 ml –200 ml

FILM WIDTH                                        220 mm                                              220 mm

POUCH WIDTH                   95 mm ± 1 mm                                             95 ± 1 mm



TYPE OF VERTICAL SEA     FINN SEAL                                         FINN SEAL



SEALING SYSTEM            CONTINUOUS                                      CONTINUOUS



FILM THICKNESS                  55 - 100 Microns                                 55-100 Micron



FILM MATERIALS                LD /LLD/ HD                                      LD/LLD/HD



FILLING ACCURACY                       ± 2 ml                                                  ± 2 ml



POUCH DIMENSION FOR

250 ML OVERLAP SEAL  L 150 mm x W 100 mm                      L150 mm x W 100 mm
